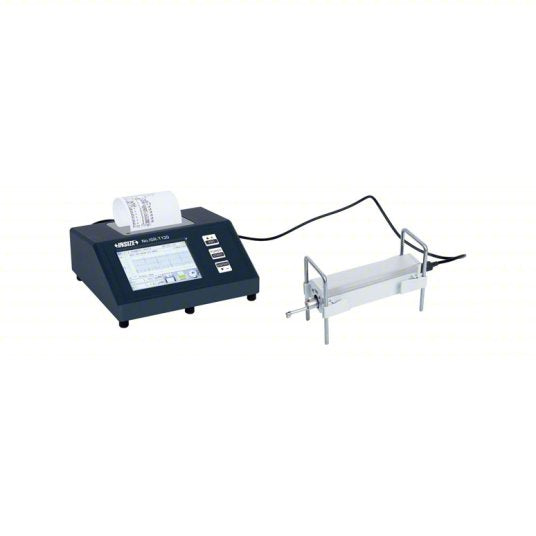

INSIZE ISR-T120 Split Surface Roughness Tester with Display (0.01 µin Resolution, Inductive Probe)(880A95)

Brand: INSIZE
Product Type: Split Surface Roughness Tester with Display
Drive Unit Principle: Transverse
Probe Sensor Type: Inductive
Probe Tip Radius: 5 µm
Profile Resolution: 0.01 µin (0.001 µm)
Sampling Lengths: 0.25 mm; 0.8 mm; 2.5 mm
Number of Sampling Spans: 1; 2; 3; 4; 5
Transverse Cutoff Lengths: 0.01 in; 0.03 in; 0.1 in
SPC Output: Yes
Data Output Type: Cabled
Tester Series: ISR-T120
Range (Inches): 0.01 µin to 25,197 µin
Range (Millimeters): 0.001 µm to 640 µm
Ra Range – Minimum: 0.001 µm
Ra Range – Maximum: 640 µm
Rz Range – Minimum: 0.02 µm
Rz Range – Maximum: 640 µm
Detector Measuring Force: 4 mN
Measuring Condition Standards: ANSI; ISO-4287; JIS B0601; ISO-12085; JIS B0631
Parameters Measured:
Ra; Rz; Rq; Rv; Rp; Rs; R3z; R3y; Rt; Rc; Rz(JIS); Rk; Rku; Rsm; Rpc; Rpk; Rvk; Rsk; Mr1; Mr2; Ry; Rmax; R5p; R5v; R10z; Rpt; Rvt; Ry5; tp1; tp2; Rmrc1; Rmrc2; Rpkx; Rvkx; Ramax; Rzmax
Country of Origin: China (subject to change)
Manufacturer Part Number: ISR-T120
