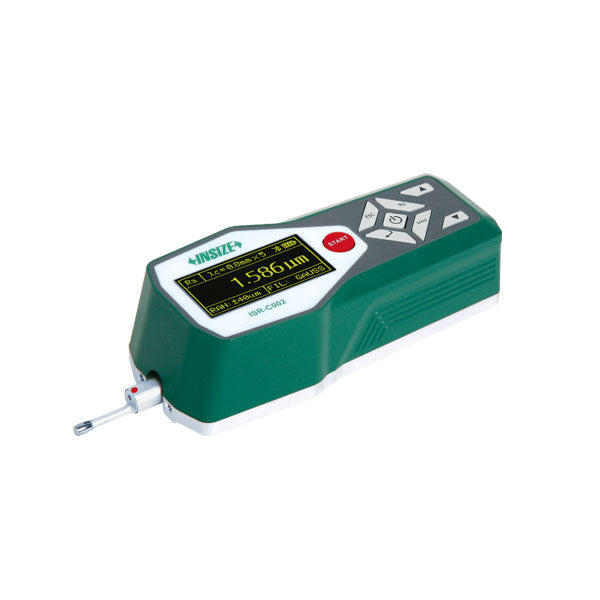

INSIZE Handheld Surface Roughness Tester Inductive and Skid (463L43)

Handheld Surface Roughness Tester (Inductive, Skid) by INSIZE

Brand: INSIZE
Sub-Brand: Insize
Manufacturer Part Number: ISR-C002
Product Type: Handheld Surface Roughness Tester
Tester Series: Insize C002
Display Functions: Analysis Graph; Language Selection; Standard Selection; Print & Export Data; Save Data; Select Sampling Length
Analysis Graph: Rmr Analysis; Roughness Profile
Drive Unit Principle: Skid

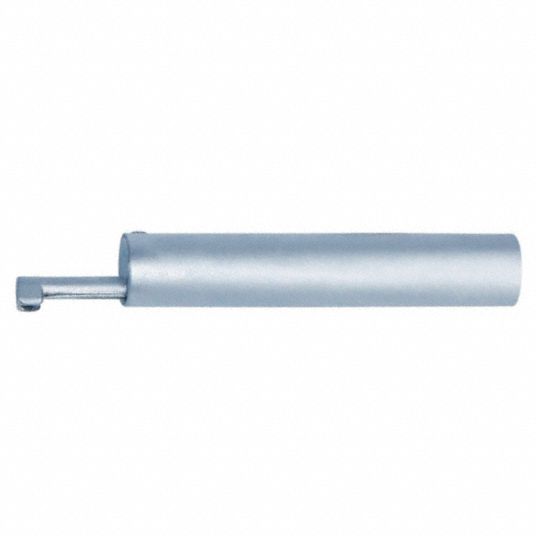

Probe Sensor Type: Inductive
Probe Tip Radius: 5 µm
Profile Resolution: 0.01 µin
Sampling Length: 0.25 / 0.8 / 2.5 mm
Transverse Cutoff Length: 0.01 in; 0.03 in; 0.1 in
Operating Position: Horizontal, Vertical
Probe Positions: Axial
Parameters Measured (21 total): Mr1, Mr2, R3y, R3z, Ra, Rk, Rku, Rmax, Rp, Rpc, Rpk, Rq, RS, Rsk, Rsm, Rt, Rv, Rvk, Ry (JIS), Rz, Rz (JIS)
Number of Parameters Measured: 21
Ra Measured – Range: 0.005 µm – 320 µm
Rz Measured – Range: 0.02 µm – 320 µm
Range: 0.01 µin – 12,598 µin; 0.001 µm – 320 µm
Detector Measuring Force: 4 mN
Measuring Condition Standards: ANSI, ISO-4287, JIS-B0601, ISO-12085, JIS-B0631
Maximum Operating Temperature: 104 °F
Minimum Operating Temperature: −4 °F
IP Rating: Not Rated
SPC Output: Yes
Data Output Type: Cabled
Data Output Connection Type: Bluetooth
Compatible Wireless Transmitter: Bluetooth
Compatible Memory Card: None
Memory Storage Capacity: 100 results
Power Supply: 9V Battery
Includes Battery: Yes
Includes Case: No
Includes Printer: No
Includes: Probe Cover; Adjustable Stand
Number of Sampling Spans: 1, 2, 3, 4, 5
Display Screen Size: 2.56 in
Dimensions (Display Unit): 1.57 in × 2.16 in × 1.57 in
Features: 21 Roughness Parameters; Bluetooth printer connectivity; Displays roughness values, profile, and curve; 100-result memory; Auto power off
Construction: Portable handheld unit
Inches Measured – Range: 0.01 µin – 12,598 µin
Millimeters Measured – Range: 0.001 µm – 320 µm
Country of Origin: (Not specified)
UNSPSC: 41114508
