INSIZE ISHB-H131 Brinell Hardness Tester
INSIZE ISHB-H131 Brinell Hardness Tester
Authorized dealer pricing. Request a quote for volume, institutional, or PO-based pricing.
Secure Checkout: SSL-encrypted payment processing:
Couldn't load pickup availability
- Ships from USA • Authorized industrial supply
- PO / Invoice accepted
- Quotes answered within 1 business day
Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date
⚠️ Heavy item — contact sales@torqueworks.us for a cheaper quote-based shipping rate before ordering.
Ships via freight carrier in 7–10 business days.

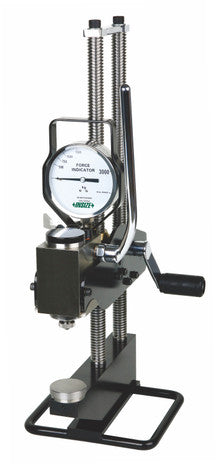

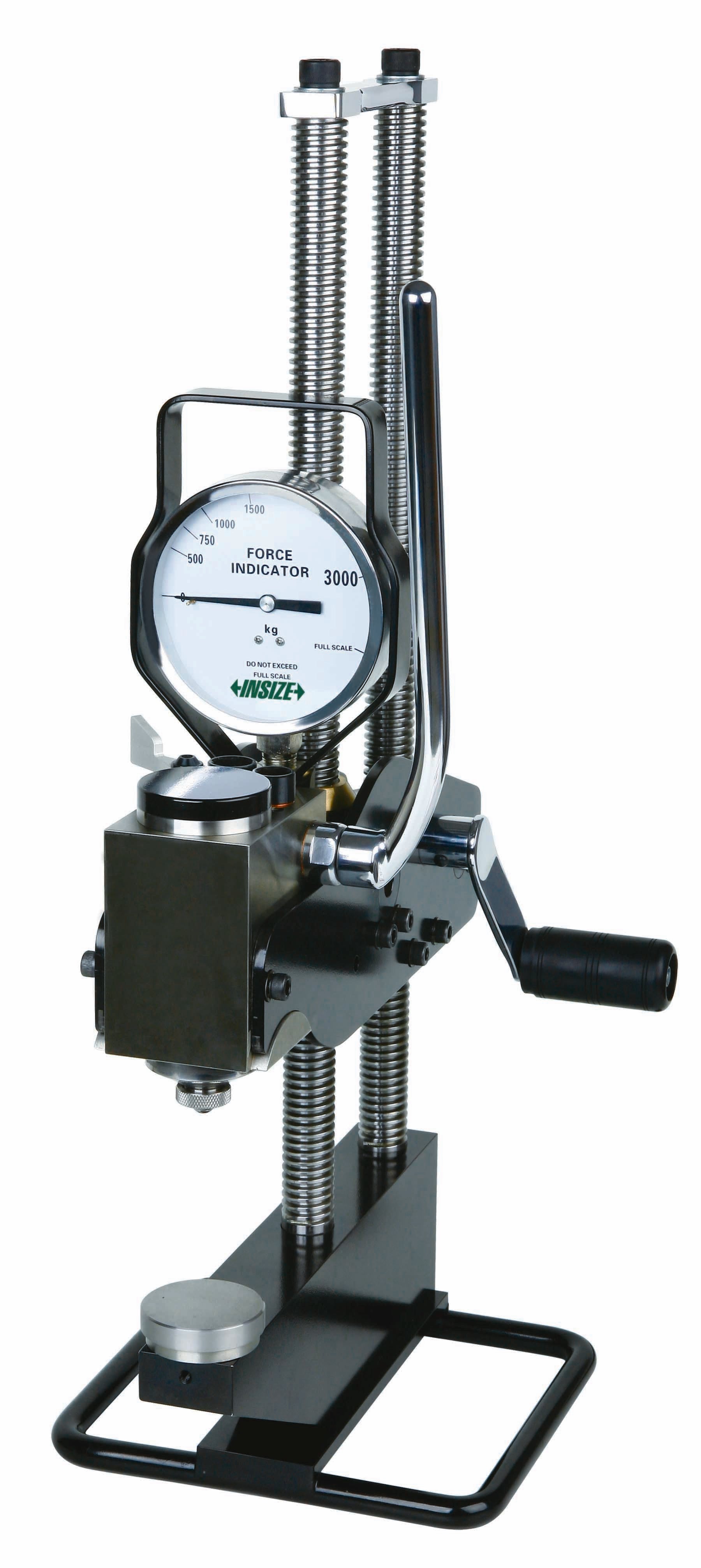

Authorized INSIZE dealer. Hydraulic Brinell hardness tester with 3000kg test force and 20× measuring microscope. Complies with ISO 6506 and ASTM E10.
Brand: INSIZE
Manufacturer Part Number: ISHB-H131
Product Type: Hydraulic Brinell Hardness Tester
Shipping Weight: Approx. 51 lb packaged

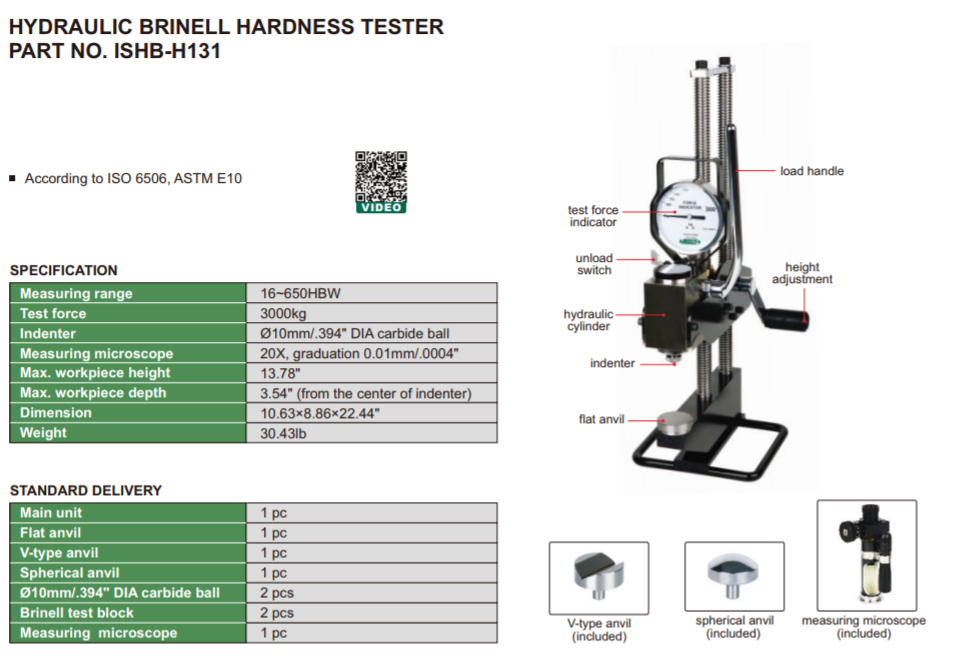

Specification
Measuring Range: 16~650 HBW
Test Force: 3000 kg
Indenter: Ø10mm / .394" DIA carbide ball
Measuring Microscope: 20×, graduation 0.01mm / .0004"
Max Workpiece Height: 13.78"
Max Workpiece Depth: 3.54" (from center of indenter)
Dimensions: 10.63 × 8.86 × 22.44"
Unit Weight: 30.43 lb
Standards: ISO 6506, ASTM E10
Standard Delivery
Main unit (1)
Flat anvil (1)
V-type anvil (1)
Spherical anvil (1)
Ø10mm / .394" DIA carbide ball indenter (2)
Brinell test block (2)
Measuring microscope (1)
Features
Hydraulic cylinder with load handle and unload switch
Test force indicator dial
Height adjustment
Portable bench-mount design
Country of Origin: China
