INSIZE

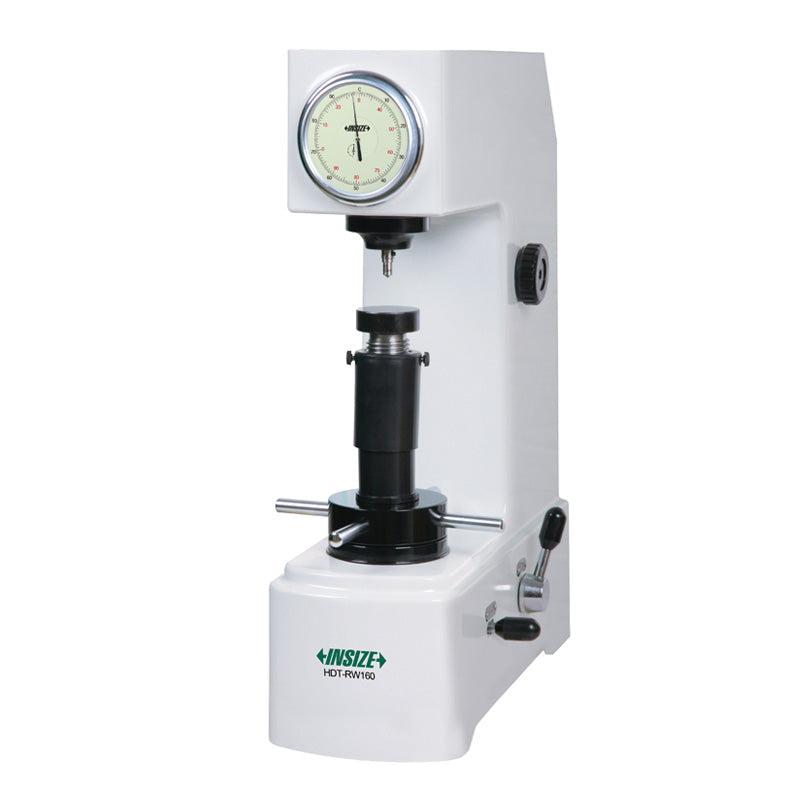

INSIZE HDT-RW160 Manual Rockwell Hardness Tester (Basic Type)

INSIZE HDT-RW160 Manual Rockwell Hardness Tester (Basic Type)

$2,799.00 USD
$2,799.00 USD
Sale Sold out
Shipping calculated at checkout.

Authorized dealer pricing. Request a quote for volume, institutional, or PO-based pricing.

Title

Secure Checkout: SSL-encrypted payment processing:
Request a Quote
  • Ships from USA • Authorized industrial supply
  • PO / Invoice accepted
  • Quotes answered within 1 business day

Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date

Ships via freight carrier. Contact us for a freight quote — this item is approximately 220 lb packaged.

Authorized INSIZE dealer. Manual benchtop Rockwell hardness tester, basic type. A popular workhorse model for metallurgy, quality control, and industrial material analysis. Complies with ISO 6508. Inspection certificate included.

Brand: INSIZE
Manufacturer Part Number: HDT-RW160
Product Type: Manual Rockwell Hardness Tester (Basic Type)

Specification
Hardness Scales: HRA, HRB, HRC, HRD, HRF, HRG
Preliminary Test Force: 98N (10kgf)
Total Test Force: 588N (60kgf), 980N (100kgf), 1471N (150kgf)
Display: Analogue
Worktable Lifting: Manual
Load Control: Manual
Resolution: 0.5 HR
Max Workpiece Height: 6.69"
Max Testing Width: 5.31" (indenter to frame distance)
Dimensions (L×W×H): 18.35 × 9.37 × 24.80"
Net Weight: 154 lb
Standards: ISO 6508

Standard Delivery
Main unit (1)
2.28" DIA flat anvil (1)
5.91" DIA flat anvil (1)
V-type anvil (1) — for cylinders .16–2.36" DIA
Diamond indenter (1)
1/16" DIA steel ball indenter (1)
1/16" DIA steel balls (5)
Hardness test block HRA80~84 (1)
Hardness test block HRB88~100 (1)
Hardness test block HRC20~30 (1)
Hardness test block HRC35~55 (1)
Hardness test block HRC55~65 (1)
Anti-dust cover (1)

Optional Accessories
ISH-SMALL ANVIL — Small V-type anvil for cylinders .08–.16" DIA
HDT-DESK — Support desk
HDT-RW160-HRC-INDENTER — Diamond indenter
HDT-RW160-HRB-INDENTER — 1/16" DIA steel ball indenter

📄 Download the official INSIZE specification sheet (PDF)

Due to size and weight, this item ships via freight carrier and is not eligible for standard parcel shipping. Contact sales@torqueworks.us for a freight quote to your location.

Country of Origin: China
