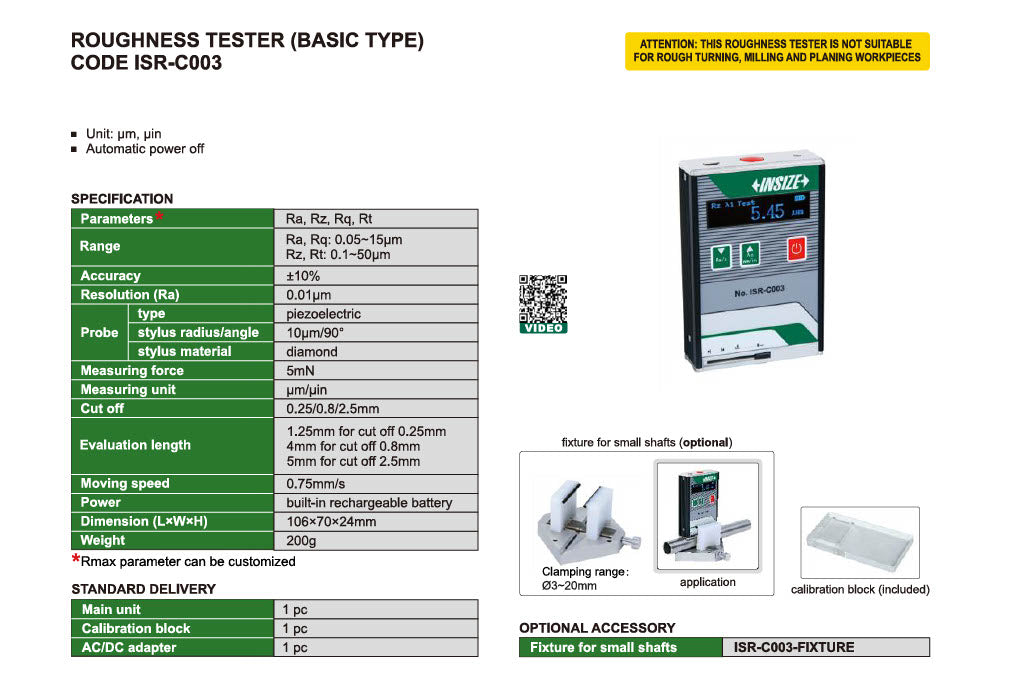

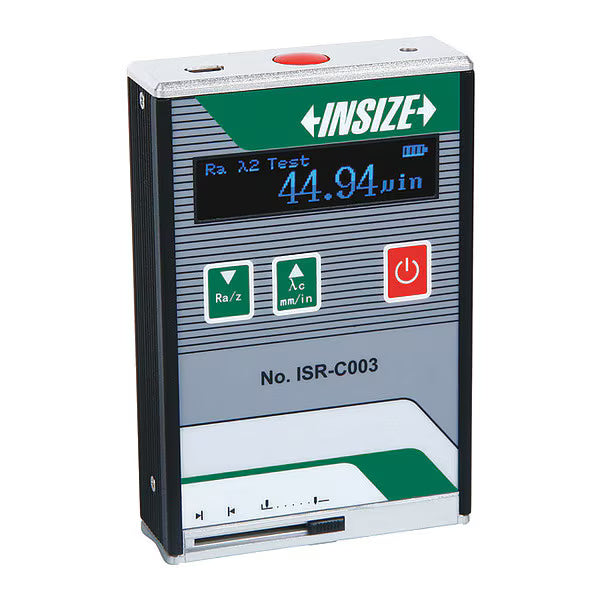

INSIZE ISR-C003 Portable Surface Roughness Tester (463L44)

Brand: INSIZE
Product Type: Portable Surface Roughness Tester
Model / Part Number: ISR-C003
Sub-Brand: Insize
Display Screen Size: 2.28 in
Operating Position: Horizontal / Vertical
Drive Unit Principle: Skid
Probe Sensor Type: Piezoelectric
Probe Tip Radius: 10 µm
Sampling Lengths: 0.25 mm / 0.8 mm / 2.5 mm
Number of Sampling Spans: 3
Resolution: 0.1 µin
Profile Parameters Measured: Ra, Rq, Rt, Rz
Measurement Range:

• Inches: 0.1 µin to 590 µin

• Millimeters: 0.01 µm to 50 µm

Transverse Cutoff Lengths:

• 0.01 in

• 0.03 in

• 0.1 in

Compliance / Standards: ANSI, ISO-4287, ISO-12085, JIS-B0601, JIS-B0631
IP Rating: Not Rated
SPC Output: No
Display Functions: Select Sampling Length
Compatible Memory Card: None
Power Supply: 9V Battery
Automatic Power Off: Yes

Operating Temperature:

• Minimum: -4 °F

• Maximum: 104 °F

Detector Measuring Force: 5 mN
Dimensions (L × W × H): 0.94 in × 2.75 in × 4.17 in

Includes:

• Surface Roughness Tester

• Calibration Block

• 9V Battery

Does Not Include:

• Case

• Printer

UNSPSC: 41114508
