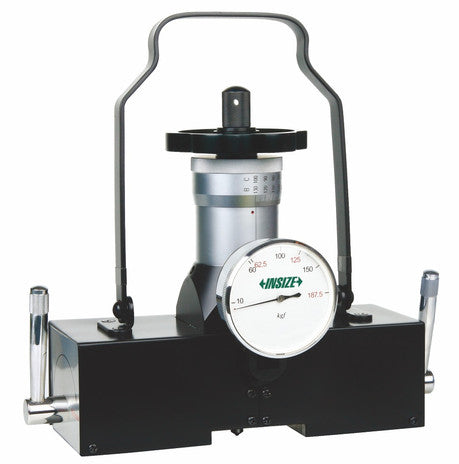

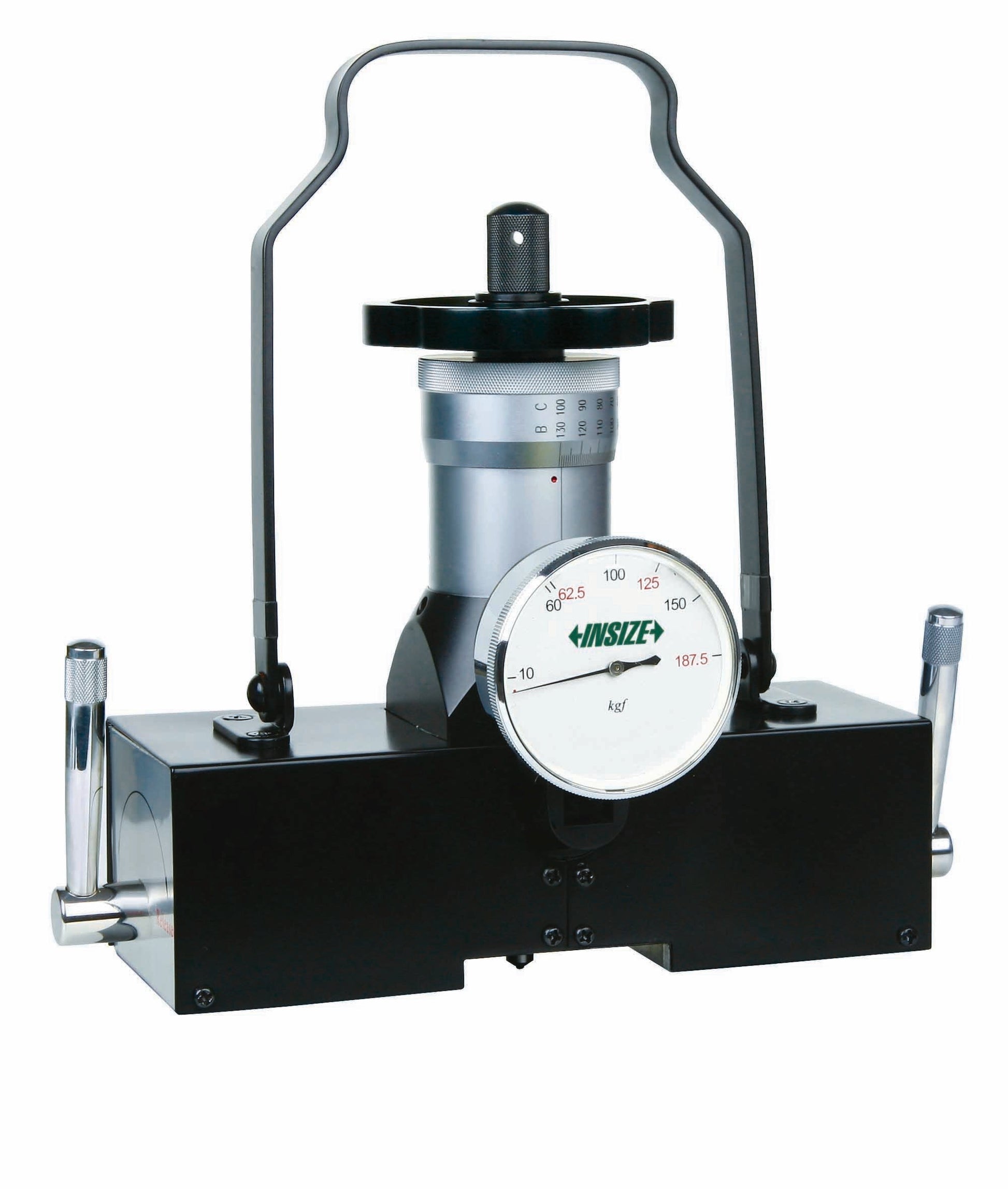

INSIZE ISHR-B141 Magnetic Rockwell & Brinell Hardness Tester

INSIZE ISHR-B141 Magnetic Rockwell & Brinell Hardness Tester

$11,351.00 USD
$11,351.00 USD
Sale Sold out
Shipping calculated at checkout.

Authorized dealer pricing. Request a quote for volume, institutional, or PO-based pricing.

Title

Secure Checkout: SSL-encrypted payment processing:
Request a Quote
  • Ships from USA • Authorized industrial supply
  • PO / Invoice accepted
  • Quotes answered within 1 business day

Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date

⚠️ Heavy item — contact sales@torqueworks.us for a cheaper quote-based shipping rate before ordering.

Ships in 7–10 business days.

Authorized INSIZE dealer. Portable magnetic Brinell/Rockwell hardness tester — clamps magnetically to large steel or iron workpieces for in-place testing, no need to move the part. Complies with ISO 6508 and ASTM E18.

Brand: INSIZE
Manufacturer Part Number: ISHR-B141
Product Type: Magnetic Brinell/Rockwell Hardness Tester
Shipping Weight: Approx. 31 lb

Specification
Rockwell Scales: HRA, HRB, HRC, HRD, HRF, HRG
Brinell Measuring Range: 20~650 HBW
Rockwell Test Force: 10kg preload; 60kg, 100kg, 150kg total load
Brinell Test Force: 62.5kg, 125kg, 187.5kg
Load Control: Manual
Minimum Rockwell Reading: 1 HR
Measuring Microscope: 40×, graduation 0.01mm
Flat Workpiece Requirement: length >180mm, width >60mm, thickness >5mm
Cylinder/Tube Requirement: length >180mm, diameter >Ø50mm, thickness >8mm
Dimensions: 220 × 70 × 220mm
Standards: ISO 6508, ASTM E18

Standard Delivery
Main unit (1)
Flat anvil (1)
Supports for cylinder or tube workpieces (4)
Diamond Rockwell indenter (1)
Ø1.5875mm carbide ball indenter (1)
Ø2.5mm Brinell indenter (1)
Hardness test block HRB85~95 (1)
Hardness test block HRC60~70 (1)
Hardness test block HRC20~30 (1)
Brinell test block (1)
Measuring microscope (1)
Magnifier with LED (1)

📄 Download the official INSIZE specification sheet (PDF)

Country of Origin: China
