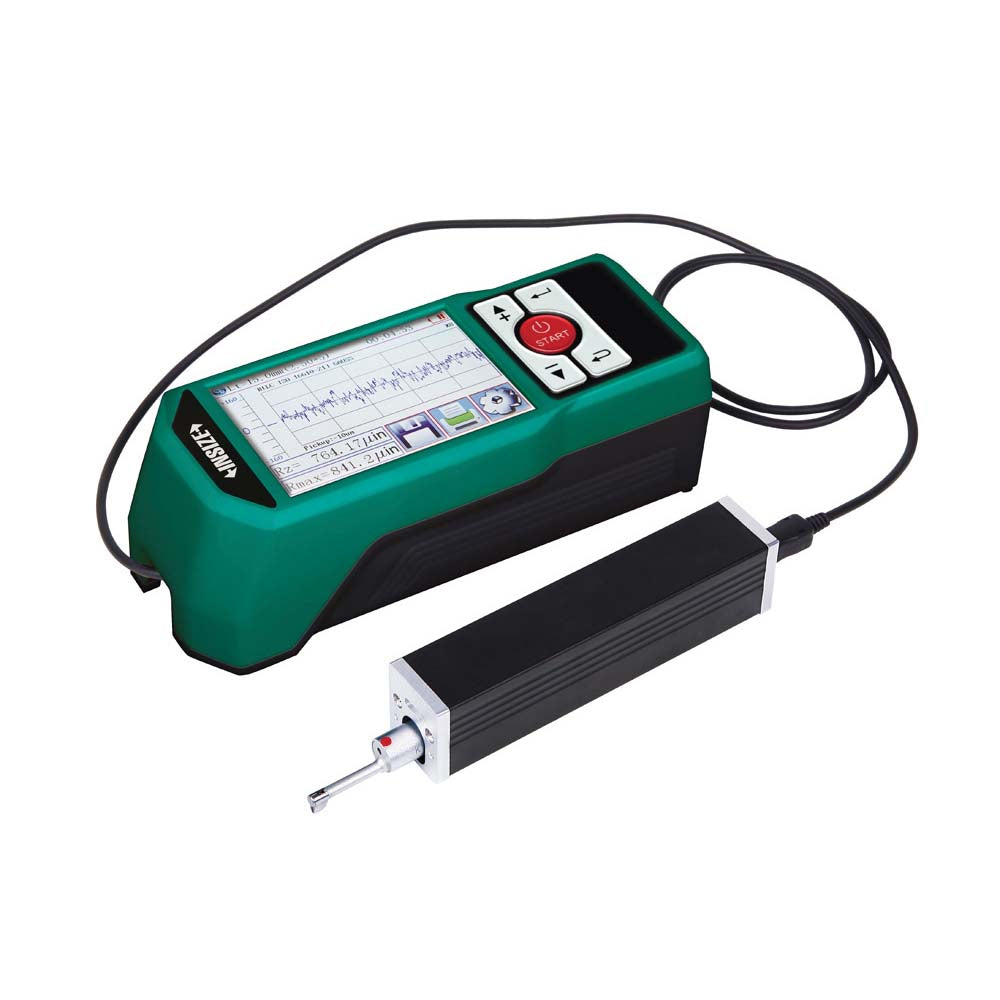

INSIZE Portable Surface Roughness Tester with External Display: 0.01µin Profile Resolution
INSIZE Portable Surface Roughness Tester with External Display: 0.01µin Profile Resolution
Pricing shown is list price. Request a quote for volume, institutional, or PO-based pricing.
Secure Checkout: SSL-encrypted payment processing:
Couldn't load pickup availability
- Ships from USA • Authorized industrial supply
- PO / Invoice accepted
- Quotes answered within 1 business day
Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date
MLD#: 54XJ13
Brand: INSIZE
Manufacturer Part Number: ISR-C300
Product Type: Portable Surface Roughness Tester with External Display
Drive Type: Separable (External Display)
Probe Sensor Type: Inductive
Stylus Radius/Angle: 5 µm / 90°
Measuring Force: 4 mN
Profile Resolution: 0.001 µm / 0.01 µin
Measuring Range – X-axis: 17.5 mm
Measuring Range – Z-axis: 320 µm (-160 µm to +160 µm)
Accuracy: ±10%
Number of Parameters Measured: 22
Parameters Measured: Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz JIS, Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax
Cutoff: 0.25 / 0.8 / 2.5 mm
Traverse Speed: 0.135 / 0.5 / 1 mm/s
Standards: ISO, DIN, ANSI, JIS
Display: Shows Roughness Values, Profile, and Curve
Memory: 100 Measurement Results
Data Output Type: Wireless and Cabled
Data Output Connection: USB, Bluetooth (Android/PC Compatible)
Bluetooth Printer: Supported
Battery Type: Built-In Rechargeable Lithium
Battery Life: 50+ Hours
Dimensions (L×W×H): 158 × 64 × 52 mm
Weight: 400 g
Country of Origin: China
