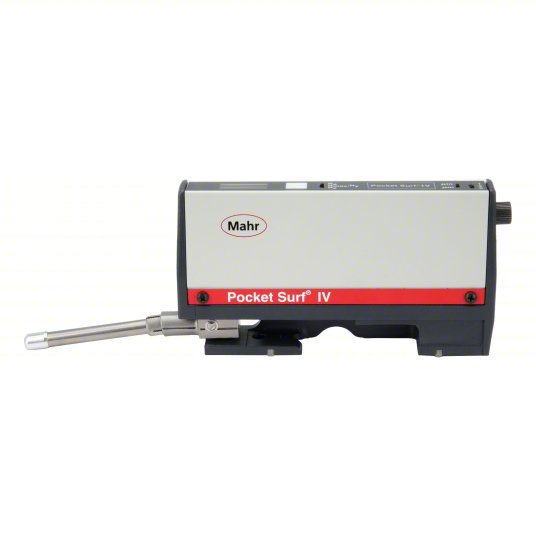

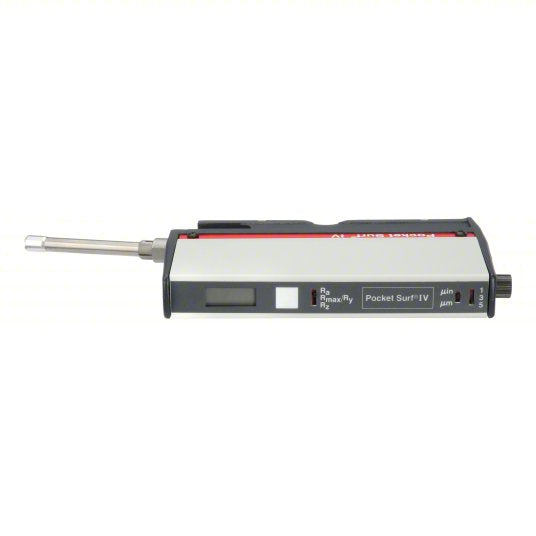

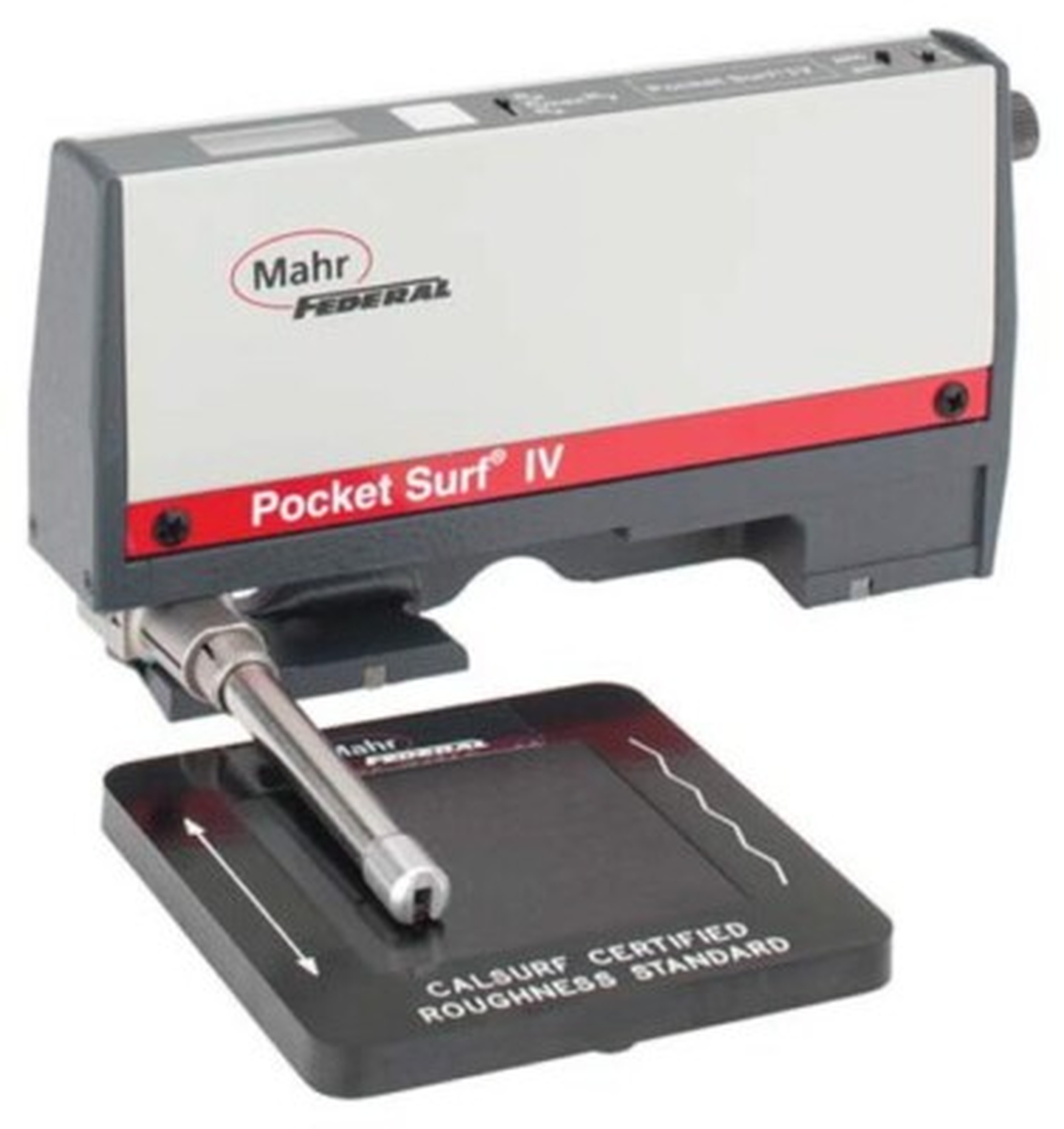

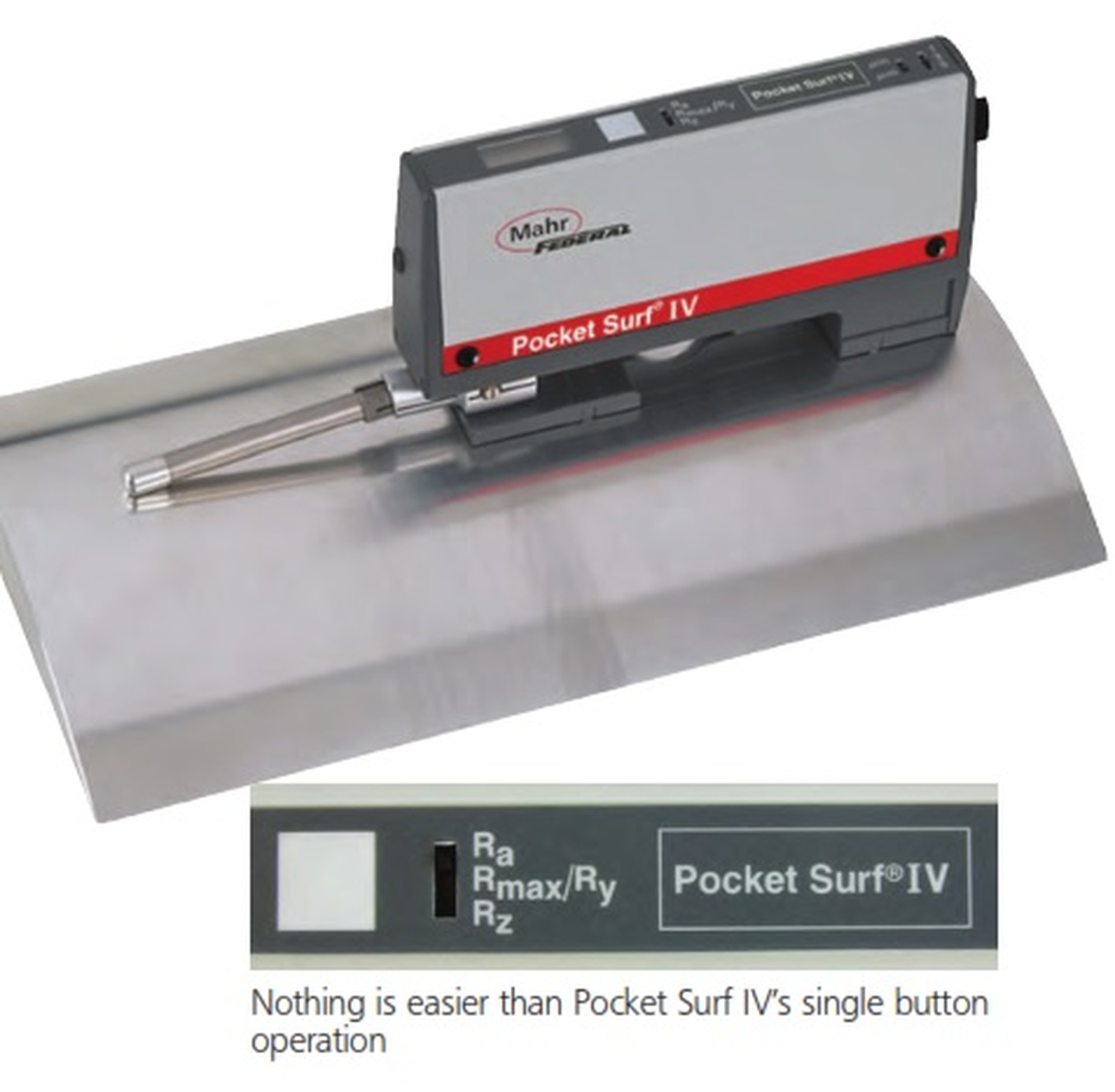

MAHR MarSurf Pocket Surf IV – Handheld Surface Roughness Tester
MAHR MarSurf Pocket Surf IV – Handheld Surface Roughness Tester
Pricing shown is list price. Request a quote for volume, institutional, or PO-based pricing.
Secure Checkout: SSL-encrypted payment processing:
Couldn't load pickup availability
- Ships from USA • Authorized industrial supply
- PO / Invoice accepted
- Quotes answered within 1 business day
Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date
MLD#: 40TF45
Brand: MAHR
Manufacturer Part Number: 2191800
Product Type: Handheld Surface Roughness Tester
Tester Series: MarSurf Pocket Surf IV
Sub-Brand: Pocket Surf® IV
IP Rating: Not Rated
Drive Unit Principle: Skid
Probe Sensor Type: Piezoelectric
Probe Tip Radius: 10 µm
Profile Resolution: 0.01 µm / 1 µin
Detector Measuring Force: 15 mN
Parameters Measured: Ra; Rmax; Ry; Rz
Sampling Length: 0.8 mm
Number of Sampling Spans: 1; 3; 5
Transverse Cutoff Length: 0.8 mm
Operating Position: Horizontal; Vertical; Upside Down
Measurement Range: 0.075 in – 0.195 in (2 mm – 5 mm)
Ra Measured – Maximum: 30 µm
Rz Measured – Maximum: 200 µm
Display Functions: LCD
Memory Storage Capacity: 1
Maximum Operating Temperature: 112°F / 41°C
SPC Output: Yes
Data Output Type: Cabled
Data Output Connection Type: RS232C; USB
Compatible Data Output Cable: Mfr. No. 4346020; Mfr. No. 4346023
Calibration Functions: Digital Calibration
Case Type: Carrying Case
Construction: Cast Aluminum
For Use With: Pocket Surf Probes
Includes Printer: No
Power Supply: 9V Battery
Dimensions (Display Unit): 140 mm x 76 mm x 6.35 mm
Measuring Condition Standards: DIN ISO/JIS
UNSPSC: 41114508
Country of Origin: USA (subject to change)
