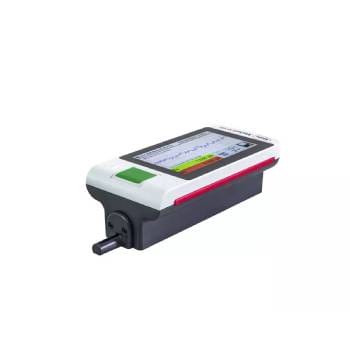

MAHR Surface Tester: Surface TesterIP40, Inductive (61KD31)

Brand: MAHR
Product Type: Surface Tester
Model / Part Number: 6910260
Sub-Brand: MarSurf M
IP Rating: IP40
SPC Output: Yes
Display Type: TFT Touch Screen
Drive Unit Principle: Inductive Skid
Memory Storage Capacity: 3900 Profiles; 500,000 Results; 1500 PDF Measuring Records
Number of Parameters Measured: 32
Parameters Measured:
A1
A2
Ar
CF
CL
CR
Mr1
Mr2
R
R3z
Ra
Rk
Rmax
Rmr
Rp
RpA
RPc
Rpk
Rpm
Rq
RS
RSk
RSm
Rt
Rvk
Rx
Rz
Rz (JIS)
Vo
Probe Sensor Type: Inductive
Probe Tip Radius: 2 µm
Profile Resolution: 8 nm
Sampling Length: 0.25 mm, 0.8 mm, 2.5 mm
Tester Series: MarSurf M
Compatible Memory Card: MicroSD
Data Export Formats: TXT, X3P, CSV, PDF
Data Output Connection Type: USB
Digital Filter Type: Gaussian / Special / Lambda
Display Screen Size: 4.3 in
Number of Sampling Spans: 1; 16
Power Supply: Rechargeable Lithium-Ion Battery
Transverse Cutoff Length: 0.25 mm, 0.8 mm, 2.5 mm
Product Type: Surface Tester
Manufacturer Part Number: 6910260

Inches Measured - Maximum: 0.689 in
Inches Measured - Minimum: 0.006 in
Millimeters Measured - Maximum: 17.5 mm
Millimeters Measured - Minimum: 0.16 mm

Ra Measured - Maximum: 40 µm
Rz Measured - Maximum: 300 µm

Range: 0.006 in to 0.689 in ; 0.16 mm to 17.5 mm
Detector Measuring Force: 0.75 mN
Measuring Condition Standards: DIN ISO / JIS
UNSPSC: 41114508
Country of Origin: Czech Republic
