MITUTOYO

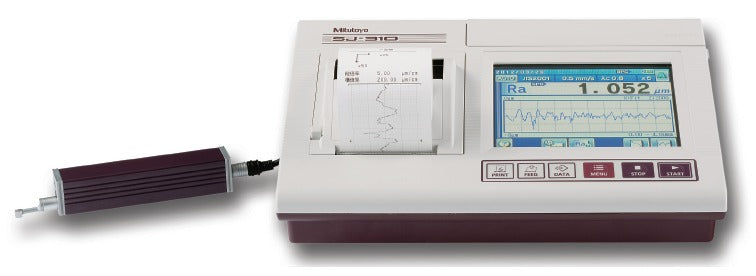

MITUTOYO Portable Surface Roughness Tester with Onboard Printer: Differential/Inductance
MITUTOYO Portable Surface Roughness Tester with Onboard Printer: Differential/Inductance
Pricing shown is list price. Request a quote for volume, institutional, or PO-based pricing.
Secure Checkout: SSL-encrypted payment processing:
Couldn't load pickup availability
- Ships from USA • Authorized industrial supply
- PO / Invoice accepted
- Quotes answered within 1 business day
Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date
MLD#: 39X222
Brand: MITUTOYO
Manufacturer Part Number: 178-571-22A
Product Type: Portable Surface Roughness Tester with Onboard Printer
Tester Series: Surftest SJ-310
Drive Type: Differential/Inductance
Profile Resolution: 0.157 µin / 4 nm
Measuring Range: 0.7 in / 17.5 mm (X-axis)
Number of Parameters Measured: 47
Parameters Measured: Ra, Rq, Rz, Rt, Rp, Rv, Rsk, Rku, RSm, Rpc, Rdc, and more
Display: 5.7 in Color Graphic Backlit LCD Touch Panel
Printer: Built-In High-Speed Thermal Printer
Memory: 10 Measurement Conditions; Optional MicroSD for 10,000 Results
Data Output: USB, RS-232C, Digimatic Output, Printer Output
Measurement Orientations: Any Orientation Including Vertical and Upside-Down
Battery: Rechargeable Ni-MH; Approx. 1,500 Measurements Per Charge
Dimensions: 10.8 × 7.8 × 4.3 in (275 × 198 × 109 mm)
Standards: JIS B0601-2001, JIS B0601-1994, JIS B0601-1982, VDA, ISO 1997, ANSI
Country of Origin: Japan
