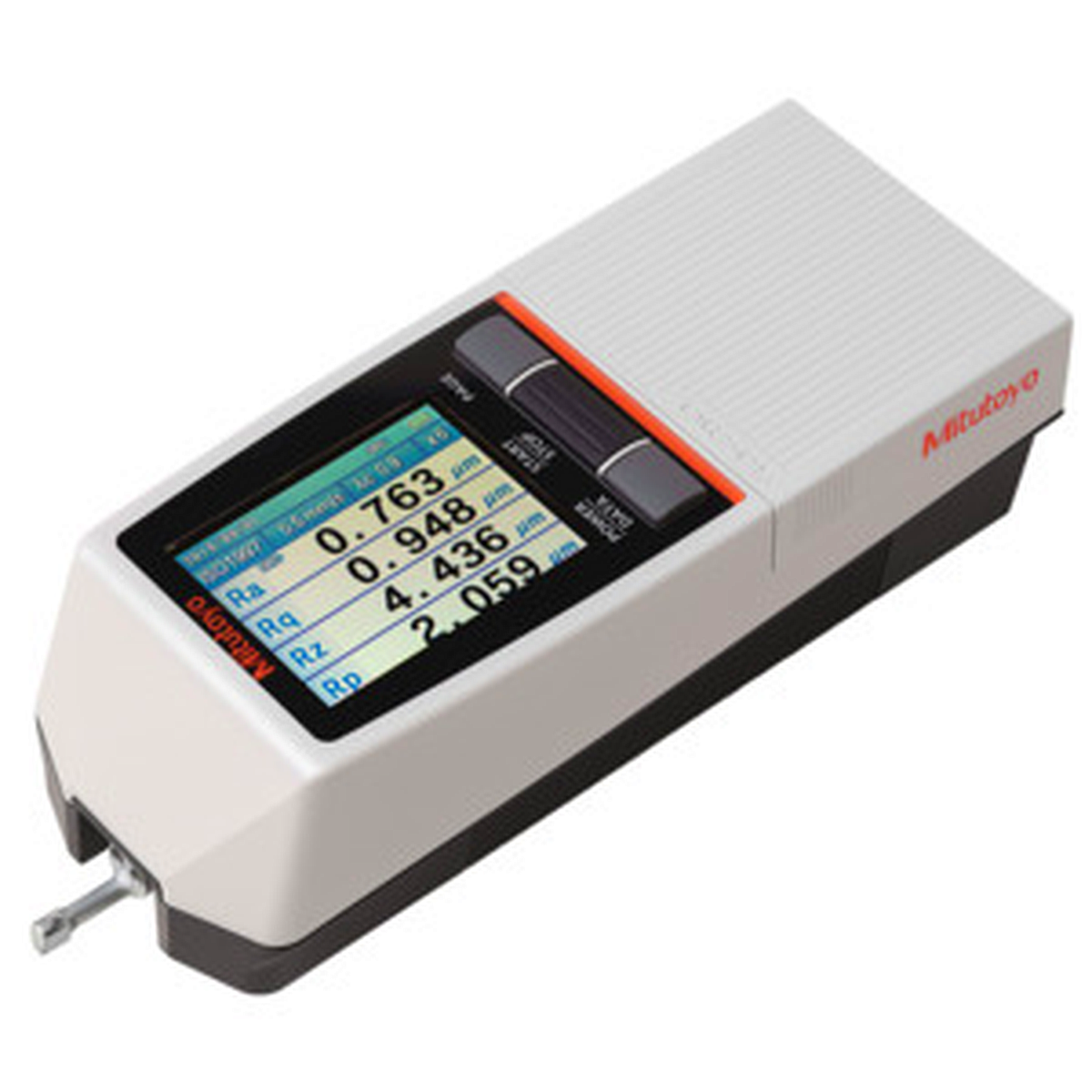

Mitutoyo SJ-200 Portable Surface Roughness Tester (Onboard Display)(879DM3)

Brand: Mitutoyo
Product Type: Portable Surface Roughness Tester
Model / Part Number: 178-742-13
Series: SJ-200
Display Screen Size: 2.8 in
Display Type: LCD (Touch, Flick, Long Press, Swipe)
Drive Unit Principle: Standard
Operating Positions: 90° Probe Position
Probe Sensor Type: Inductive
Probe Tip Radius: 5 µm

Sampling Lengths:

• 0.08 mm

• 0.25 mm

• 0.8 mm

• 2.5 mm

• 8 mm

Profile Resolution:

• 25 µm / 0.2 nm

• 100 µm / 0.9 nm

• 360 µm / 3.5 nm

Measurement Range:
25 µm / 0.2 nm to 360 µm / 3.5 nm

Number of Sampling Spans: ×1 to ×10

Memory / Storage:

• Measurement Results: 10,000 Sets

• Image Data: 500 Sets

• MicroSD (Optional)

Data Output:

• SPC Output: Yes

• Data Export: CSV / PDF

• Compatible Wireless: U-WAVE-TIB

• Compatible Cables: 12BAA303 / 12BAS451

Digital Filter Types: 2CR75 / PC75 / Gaussian

Dimensions (Display Unit): 164.7 mm × 67.1 mm × 51.9 mm
Dimensions (Drive Unit): 115 mm × 23 mm × 26 mm

Automatic Features / Functions:

• Ra Calibration & Average Calibration

• Display Interface Supports 25 Languages

• Compatible with ISO 21920

Includes:

• Tester Unit

• Battery

• Carrying Case

Does Not Include:

• Printer Paper (Thermal)

• MicroSD Card

Standards Compliance:
ASME B46.1, ISO 4287, ISO 12085, ISO 13565, ISO 21920, JIS B 0601 Series, VDA 2006

Country of Origin: Japan
