SHIMPO

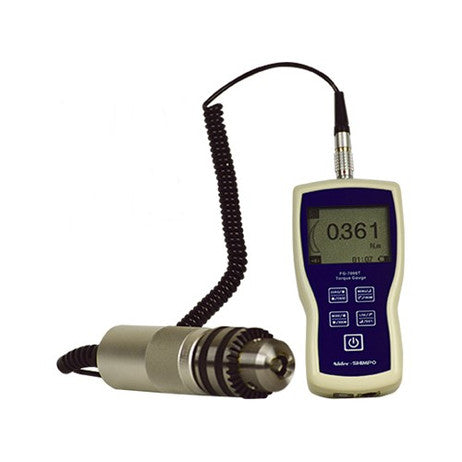

SHIMPO FG-7000T Digital Torque Gauge

$2,224.12 USD

Sale Sold out

Shipping calculated at checkout.

Pricing shown is list price. Request a quote for volume, institutional, or PO-based pricing.

Torque Range FG-7000T-1 – 1 N-m (0.005 in-lb to 1 N-m) MLD#49VY93 FG-7000T-2 – 5 N-m (0.01 in-lb to 5 N-m) MLD#49VY94 FG-7000T-3 – 10 N-m (0.01 in-lb to 10 N-m) MLD#49VY95

Secure Checkout: SSL-encrypted payment processing:

Request a Quote

Ships from USA • Authorized industrial supply
PO / Invoice accepted
Quotes answered within 1 business day

Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date

MLD#: 49VY93 / MLD#: 49VY94 / MLD#: 49VY95

Brand: SHIMPO
Manufacturer Part Numbers: FG-7000T-1 / FG-7000T-2 / FG-7000T-3
Product Type: Digital Torque Gauge
Tester Series: FG-7000T

Drive Size: 1/32 in to 25/64 in (via Key Chuck Adapter)
Selectable Units: N-m, N-cm, kgf-cm, lbf-in
Accuracy: ±0.3% F.S.
Data Sampling Rate: 1,000 Hz
Measurement Modes: Track, Peak, First Peak, Preset
Overload Capacity: 120% F.S. (LCD Flashes Beyond 110%)

Display: 160×128 Dot Matrix LCD with LED Backlight, 180° Auto-Reversible
Display Update Rate: 10×/sec
Memory: 1,000 Data Points with Group Categorization

Set Point: Programmable High/Low Limits with NPN/PNP Comparator Output
Data Output: USB
Power: Rechargeable Battery; Up to 16 Hours Continuous Use

Includes: Key Chuck; AC Adapter/Charger; USB Cable; Calibration Certificate; Carrying Case
Dimensions: 5.7 × 2.9 × 1.4 in (145 × 73 × 35.5 mm)
Weight: 3.7 lbs (1.7 kg)
Country of Origin: USA
