STARRETT

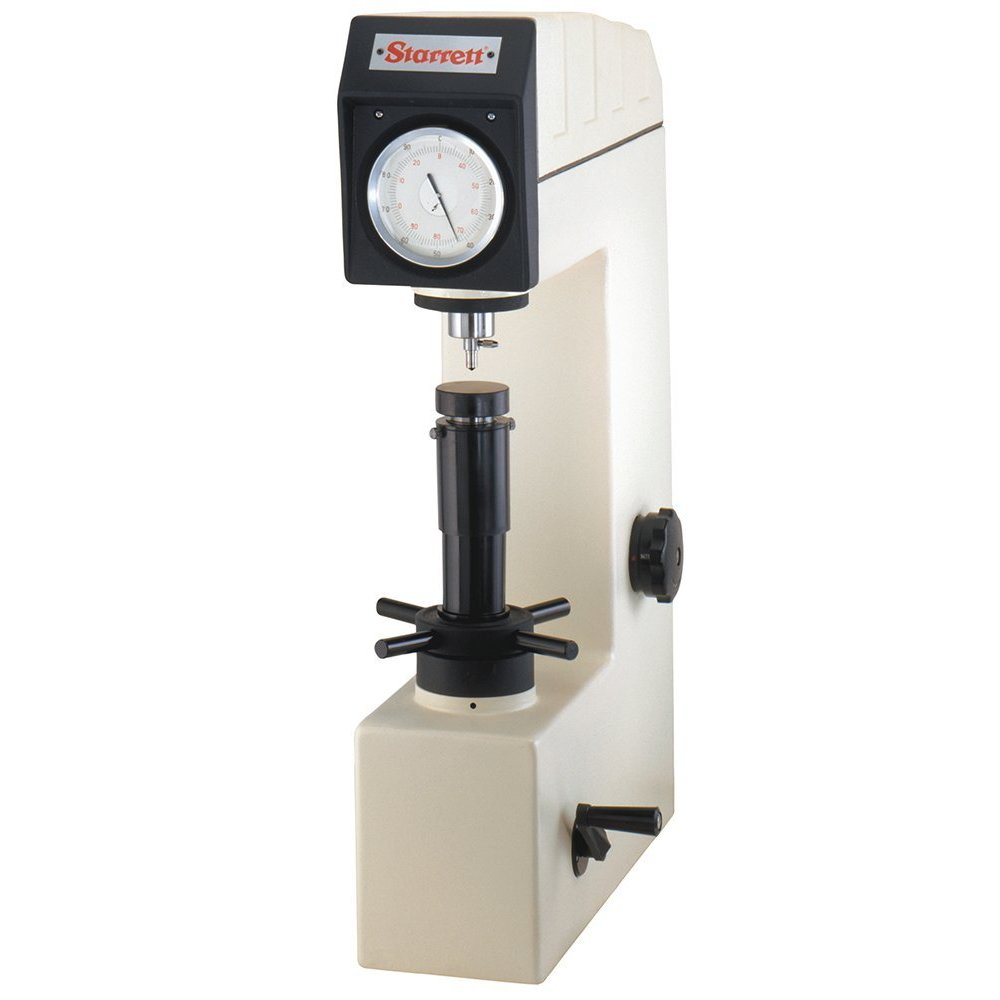

STARRETT Hardness Tester: Alloys/Steel, +/-1 HRC, Diamond, 25 HRC Measuring Range - Min, Rockwell
STARRETT Hardness Tester: Alloys/Steel, +/-1 HRC, Diamond, 25 HRC Measuring Range - Min, Rockwell
Pricing shown is list price. Request a quote for volume, institutional, or PO-based pricing.
Secure Checkout: SSL-encrypted payment processing:
Couldn't load pickup availability
- Ships from USA • Authorized industrial supply
- PO / Invoice accepted
- Quotes answered within 1 business day
Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date
MLD#: 2ZUP4
Brand: STARRETT
Manufacturer Part Number: 3814
Product Type: Benchtop Analog Rockwell Hardness Tester
Hardness Scales: Rockwell A Through H and K
Minor Load: 10 kgf
Major Loads: A: 60 kgf; B: 100 kgf; C: 150 kgf
Test Force Application: Dead Weight
Test Force Control: Hydraulic Dashpot System
Display: Analog Dial Gauge
Resolution: 0.1 HR
Body Material: Cast Iron
Throat Depth: 6.6 in (168 mm)
Maximum Test Height: 6.69 in (169.9 mm)
Standards: ASTM E18
Includes: Diamond Indenter; 1/16 in Ball Indenter; Three Certified Test Blocks (HRA/HRB/HRC); Four Test Tables (5.87 in and 2.5 in Flat Anvils; 5/8 in Spot Anvil; Standard Vee Anvil); Accessory Case
Dimensions: 30 × 8.5 × 20 in (762 × 216 × 508 mm)
Weight: 187 lb (85 kg)
Country of Origin: USA
