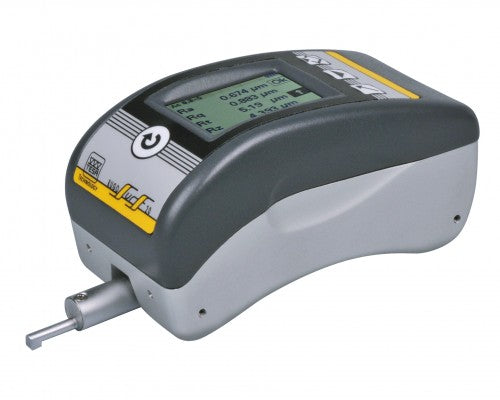

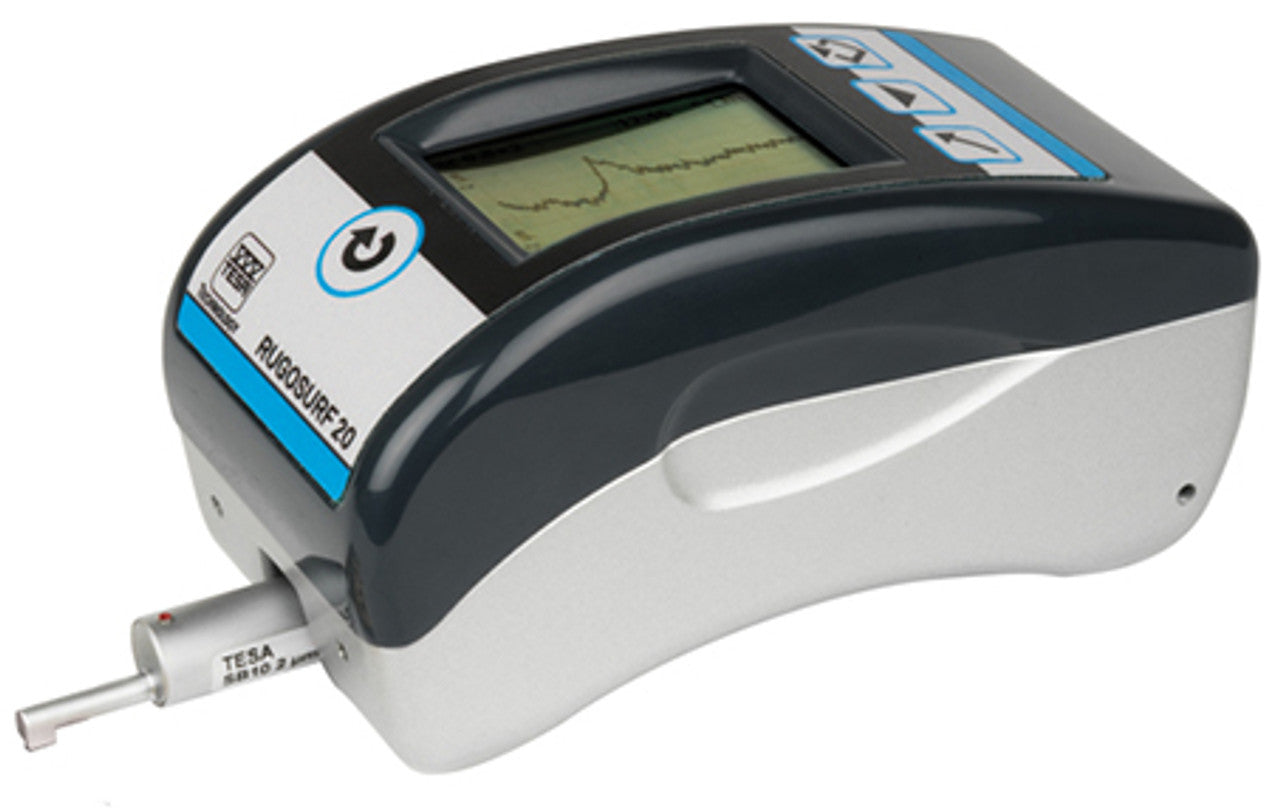

TESA Brown & Sharpe RugoSurf 20 Portable Surface Roughness Tester(38N887)

Brand: TESA Brown & Sharpe
Product Type: Portable Surface Roughness Tester with Onboard Display
Model / Part Number: 06930013
Sub-Brand: RugoSurf 20
Display Screen Size: 2 in
Drive Unit Principle: Inductive
Probe Sensor Type: Inductive
Probe Tip Radius: 5 µm
Sampling Lengths: 0.25 mm / 0.8 mm / 2.5 mm
Number of Sampling Spans: 2
Profile Parameters Measured: Pmr, PPc, Ra, Rc, Rmax, Rmr, RPc, Rq, RSm, Rt, Rz
Display Resolution: 160 × 100
Profile Resolution: 0.001 µm

Measurement Range:

• Inches: 9.842 to 688.976

• Millimeters: 0.25 to 17.5

Roughness Capability:

• Ra Range: 0.02 µm to 100 µm

• Rz Range: 0.1 µm to 500 µm

Transverse Cutoff Lengths:
0.25 mm
0.8 mm
2.5 mm

Compliance / Standards: ISO 3274
IP Rating: IP67
SPC Output: Yes
Data Output Type: Cabled
Compatible Memory Card: None
Data Output Connection: USB
Power Supply: Included

Detector Measuring Force: 0.75 mN

Dimensions (L × W × H):
122 mm × 60 mm × 62 mm (Display + Drive Unit)

Includes:

• Power Supply

• Master Specimen

• Manual

• Height Gauge Adapter Lug

Does Not Include:

• Case

• Printer

UNSPSC: 41114508
Country of Origin: Italy
