TESTO

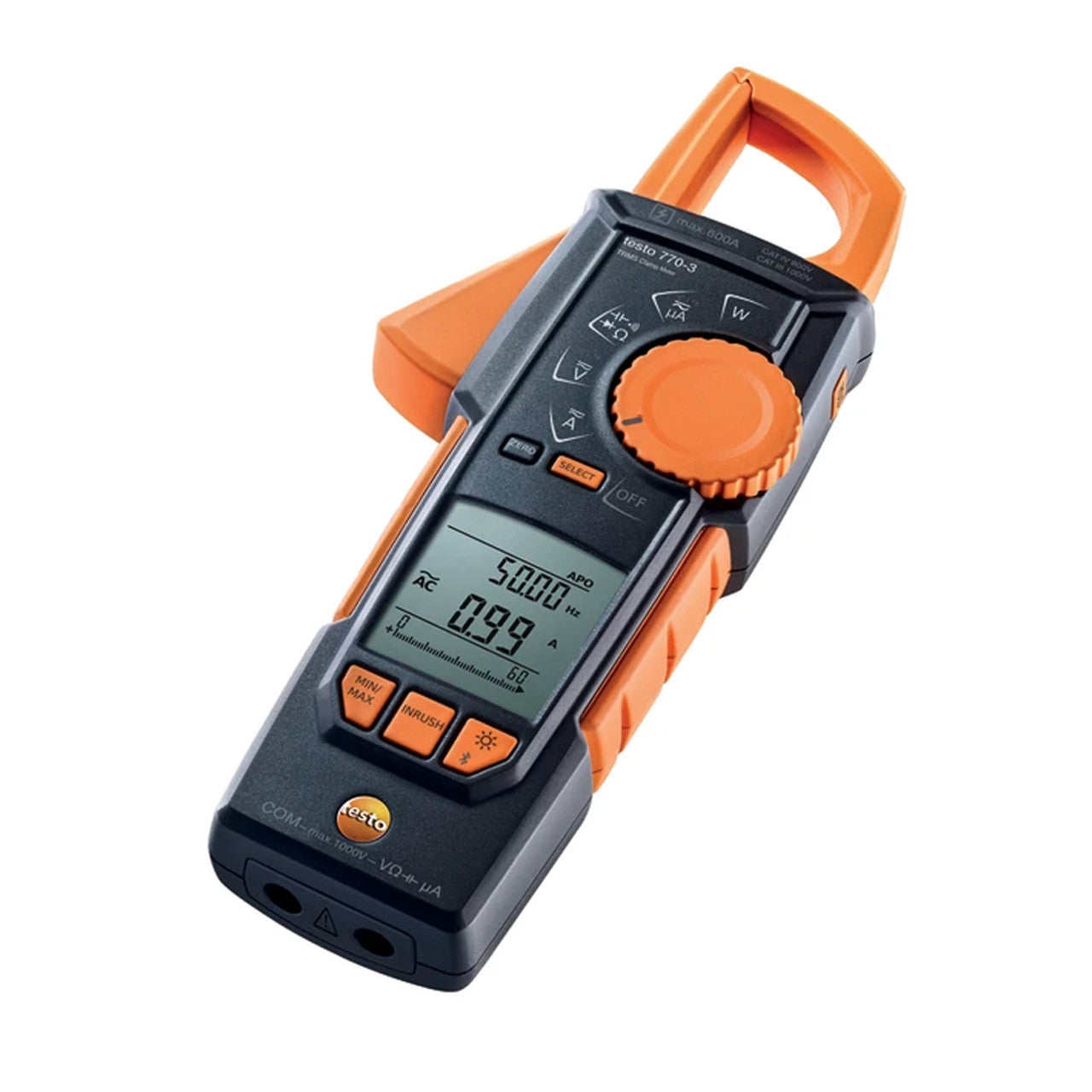

TESTO Digital Clamp Meter Kit (Bluetooth/Data Logging)

$515.70 USD

Sale Sold out

Shipping calculated at checkout.

Pricing shown is list price. Request a quote for volume, institutional, or PO-based pricing.

Model/Range Kit w/ Leads, Clips, TC Probe

Secure Checkout: SSL-encrypted payment processing:

Request a Quote

Ships from USA • Authorized industrial supply
PO / Invoice accepted
Quotes answered within 1 business day

Include: Product + Model # + Qty + Ship-to ZIP + Needed-by date

Digital Clamp Meter Kit (Bluetooth/Data Logging) by TESTO (14x13x12)

Dimensions: 14x13x12 in.

Manufacturer Part Number: 0590 7703 05
Instrument Safety Rating: CAT III 1000V; CAT IV 600V
AC Response Calculation: TRMS
Calibration Certificate Included: Yes
Additional Components: Test Leads; Clips; TC Probe
Parameters Measured:

Frequency
Resistance
AC Current
AC Voltage
Active Power
Apparent Power
Capacitance
DC Current
DC Voltage
Power Factor
Reactive Power
Temperature

Maximum AC Current Measurement: 600 A
Maximum DC Current Measurement: 600 A
Maximum AC Voltage Measurement: 1,000 V
Maximum DC Voltage Measurement: 600 V
Bluetooth Compatible: Yes

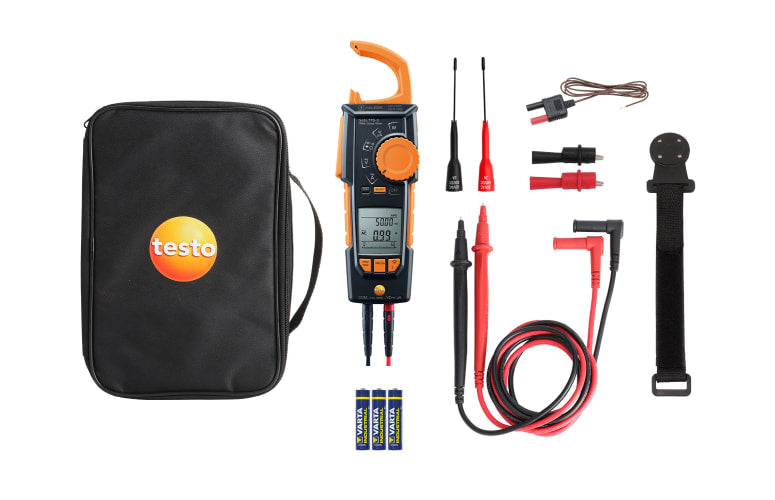

Includes: Carrying case; (3) AAA batteries; Magnetic holder; Set of crocodile clips; Set of measuring leads; Set of micro clips; TC probe; Test report; Testo 770-3 clamp meter with Bluetooth
Current Leakage Testing: Yes
Data Logging: Yes
Dustproof: Yes
Instrument Counts: 6,000
Intrinsically Safe: Yes
Removable Screen: No
Thermal Imaging: No
Waterproof: No
IP Rating: IP40
Audible Continuity: Yes
Data Hold: No
Display Type: LCD
AC Current Measurement Resolution: 0.01 A
AC Voltage Measurement Resolution: 1 mV
Auto Power Off: Yes
Auto Ranging: Yes
Bar Graph Included: No
Basic AC Current Accuracy: ±1.5 %
Basic AC Voltage Accuracy: ±1 %
Basic DC Current Accuracy: ±2 %
Basic DC Voltage Accuracy: ±0.8 %
Battery Size: AAA
Capacitance Measurement Accuracy: ±1.5 %
DC Current Measurement Resolution: 0.1 A
DC Voltage Measurement Resolution: 1 mV
Digital/Analog: Analog
Diode Test: Yes
Frequency Counter: 0.00 Hz – 10 kHz
Frequency Measurement Accuracy: ±1 %
Frequency Measurement Resolution: 0.1 Hz
Inrush Current Measurable: Yes
Jaw Opening: 1.5 in
Manufacturer’s Warranty Length: 2 yr
Maximum Operating Temperature: 50 °C
Maximum Resistance Measurement: 60 MΩ
Minimum Operating Temperature: 14 °F
Non-Contact Voltage Detector: Yes
Peak Hold: Yes
Resistance Measurement Accuracy: ±1.5 %
Overall Height: 9.8 in
Overall Width: 3.8 in
Standards: EN 61010-2-032; EN 61140; EN 61326-1
Batteries Included: Yes
Battery Access: Yes
Battery Chemistry: Alkaline; Lithium; Carbon Zinc
Battery Voltage: 1.5 V
Capacitance Measurement Resolution: 6 nF
Elapse Time Clock: Yes
Maximum Capacitance Measurement: 60 mF
Maximum Frequency Measurement: 10 kHz
Maximum Storage Temperature: 60 °C
Memory: App Only
Min-Max-Avg Button Included: Yes
Minimum AC Current Measurement: 0.01 A
Minimum AC Voltage Measurement: 1 mV
Minimum Capacitance Measurement: 6 nF
Minimum DC Current Measurement: 0.01 A
Minimum DC Voltage Measurement: 1 mV
Minimum Frequency Measurement: −10 kHz
Minimum Resistance Measurement: 60 Ω
Minimum Storage Temperature: −15 °C
Multiple On-Screen Displays: Yes
Software Included: Yes
Thermometer Type: Type K
Time of Day Clock: No
UNSPSC: 0
