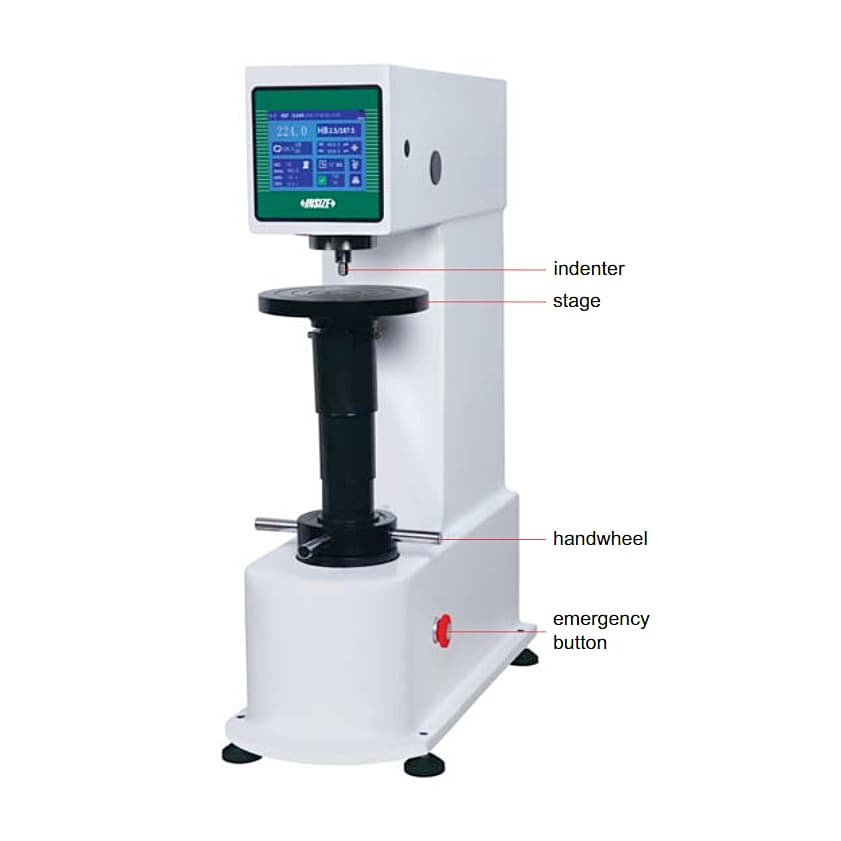

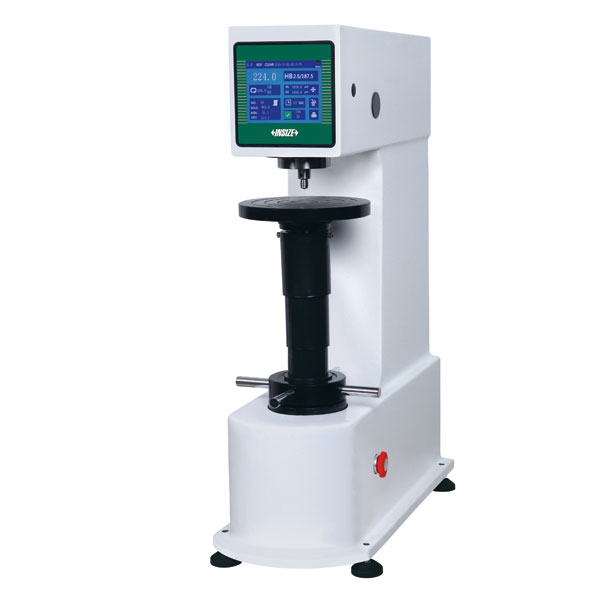

INSIZE Hardness Tester (Brinell) With Optical Magnification: 20X

Hardness Tester (Brinell) by INSIZE

• Product Type: Hardness Tester

• Brand: INSIZE

• Hardness Scale: Brinell (HBW)

• Accepted Test Materials: Cast Iron, Non-Ferrous Metals, and Steel

• Accuracy: 0.1 HBW

• Indenter Type: Ball

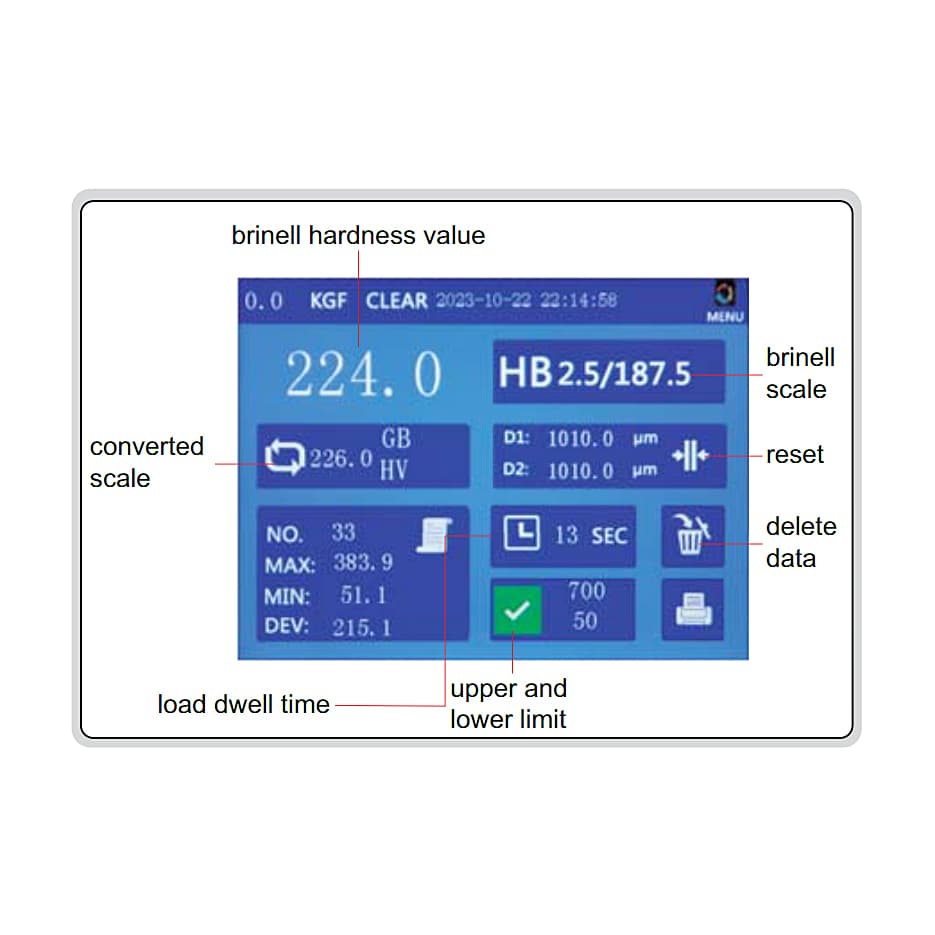

• Display Type: Digital

• Testing Method: Press In

• Interface Type: RS232

• Optical Magnification: 20X

• Optical Resolution: 0.0005 in

• Measuring Range: 10–650 HBW

• Work Surface Material: Cast Iron, Non-Ferrous Metals, Steel

• Work Surface Width: 1-31/32 in

• Test Depth (Max): 5-1/2 in

• MLD# 826C04



• Test Height Range: 0–9 in

• Includes:

  • 3-5/64 in Diameter Flat Anvil

  • 7-7/8 in Diameter Flat Anvil

  • Measuring Microscope

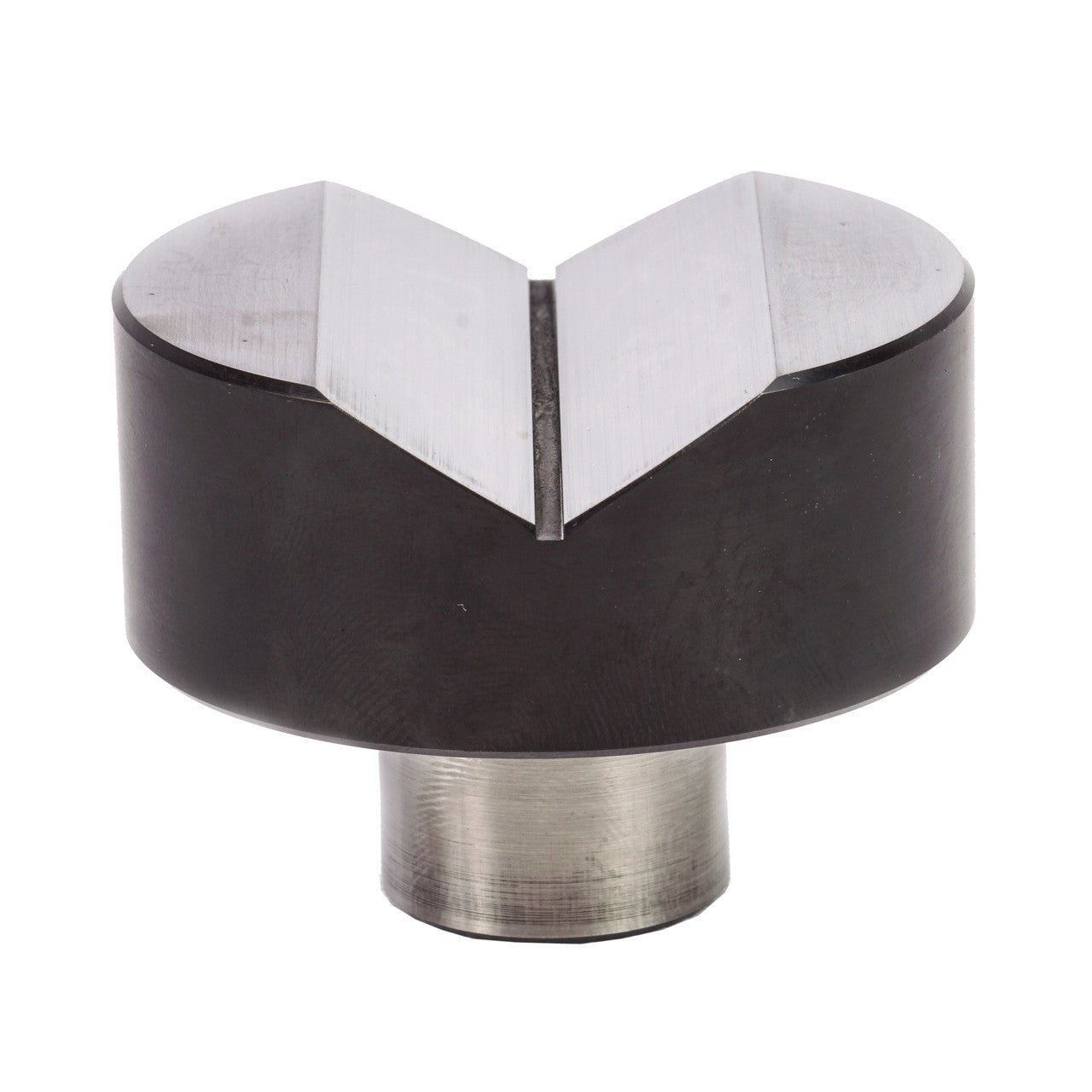

  • V-Type Anvil

• Catalog Page: N/A

• UNSPSC: 0
