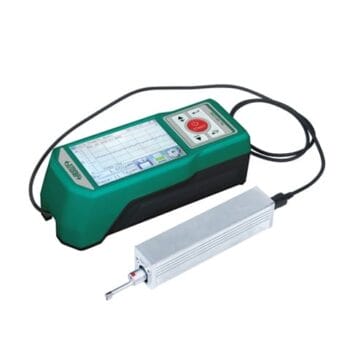

INSIZE ISR-C301 Portable Surface Roughness Tester – External Display, Small-Force Probe (880A94)

Brand
INSIZE

Product Type
Portable Surface Roughness Tester with External Display (Small Force)

Item Number
880A94

Manufacturer Model
ISR-C301

Display
External digital display (cabled)

SPC Output
Yes

Data Output Type
Cabled

Drive Unit Principle
Transverse

Probe Sensor Type
Inductive

Probe Tip Radius
2 µm

Detector Measuring Force
0.75 mN

Parameters Measured
Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax, R5p, R5v, R10z, Rpt, Rvt, Ry5, tp1, tp2, Rmrc1, Rmrc2, Rpkx, Rvkx, Ramax, Rzmax

Profile Resolution
0.01 µin

Sampling Lengths
0.25 mm
0.8 mm
2.5 mm

Number of Sampling Spans
1, 2, 3, 4, 5

Transverse Cutoff Length
0.01 in
0.03 in
0.1 in

Range
0.01 µin to 15,748 µin
0.001 µm to 400 µm

Ra Range
0.005 µm to 40 µm

Rz Range
0.02 µm to 400 µm

Millimeters Measured – Minimum
0.001 µm

Millimeters Measured – Maximum
400 µm

Inches Measured – Minimum
0.01 µin

Inches Measured – Maximum
15,748 µin

Tester Series
ISR-C301

Measuring Standards
ANSI
ISO 4287
ISO 12085
JIS B0601
JIS B0631

Country of Origin
China (subject to change)
